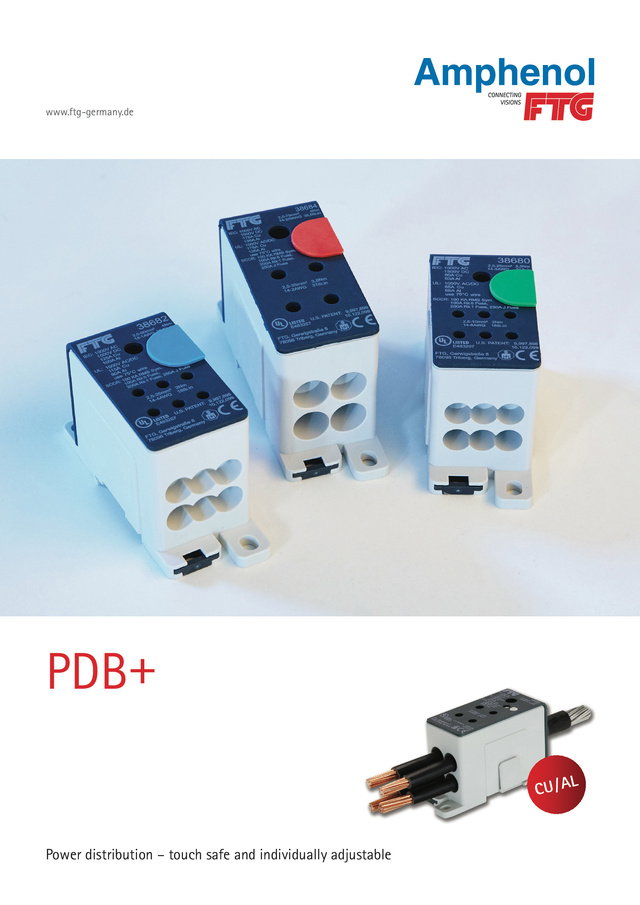

www.ftg-germany.de PDB+ L CU / A Power distribution touch safe and individually adjustable PDB+ 3 mm 5mm Engineering Excellence meets Modern Design! The new FTG single pole compact Power Distribution Block includes many new innovative refinements including Selectable Phase Identification, Color Marking Plates, Simple and Secure DIN Mounting Clip, Incoming Cable Safety Slide, and Connection Clip for multipole applications. Technical Data Adjustable Dial allows for Selection of L1L2L3 phase designation Color Marking Plates in Brown,Black or Grey Simple and secure DIN rail locking clip allows easy mounting on DIN Rail Incoming Cable Safety Slide assures IP20 protection with all conductor sizes Connection Clip included with each PDB for Multipole applications Suitable for Aluminum and Copper conductors K00 AUX38681 K00 AUX8680 Part # K00 AUX38682 Rated current Standard Voltage Rating PDB Block Material Suitable Conductors Housing Color K00 AUX38687 K00 AUX38685 K00 AUX38684 IEC 60947-7-1 UL Listed to 1953 file QPQS - E483207 1000 V AC / 1500 V DC - IEC 1000 V AC / DC - UL Tin plated Aluminum Copper or Aluminum light grey / dark grey K00 AUX38686 Connection cross section K00 AUX38688 Certification single- / multi-wire with sleeve / ferrule K00 AUX38681 K00 AUX38681C* IEC: 125 A Cu | 100 A Al 1 x 10 - 35 mm | 8 - 2 AWG 1 x 2,5 - 25 mm | 14 - 4 AWG 6 x 2,5 - 16 mm | 14 - 4 AWG 1 x 10 - 35 mm | 8 - 2 AWG 1 x 2,5 - 16 mm | 14 - 6 AWG 6 x 2,5 - 16 mm | 14 - 6 AWG UL...
