Sockel
|
|
|
|
PGZ12
|
|
|
|
|
|
|
Kolbenform
|
|
|
|
T19
|
|
|
|
|
|
|
Kolbenausführung
|
|
|
|
Klar
|
|
|
|
|
|
|
Brennstellung
|
|
|
|
Beliebig
|
|
|
|
|
|
|
Life to 10% failures, base up
|
|
|
|
13000 hr
|
|
|
|
|
|
|
Life to 10% failures, horiz.
|
|
|
|
22000 hr
|
|
|
|
|
|
|
Life to 50% failures, base up
|
|
|
|
16000 hr
|
|
|
|
|
|
|
Life to 50% failures, horiz.
|
|
|
|
30000 hr
|
|
|
|
|
|
|
LSF EL 12kh Rated,12h cyc. bup
|
|
|
|
92 %
|
|
|
|
|
|
|
LSF EL 12kh Rated,12h cyc. hor
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 2kh Rated,12h cyc. bup
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 4kh Rated,12h cyc. bup
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 6kh Rated,12h cyc. bup
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 8kh Rated,12h cyc. bup
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 2kh Rated,12h cyc. hor
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 4kh Rated,12h cyc. hor
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 6kh Rated,12h cyc. hor
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 8kh Rated,12h cyc. hor
|
|
|
|
99 %
|
|
|
|
|
|
|
LSF EL 30kh Rated,12h cyc. hor
|
|
|
|
50 %
|
|
|
|
|
|
|
LSF EL 24kh Rated,12h cyc. hor
|
|
|
|
87 %
|
|
|
|
|
|
|
LSF EL 20kh Rated,12h cyc. hor
|
|
|
|
95 %
|
|
|
|
|
|
|
LSF EL 16kh Rated,12h cyc. bup
|
|
|
|
50 %
|
|
|
|
|
|
|
LSF EL 16kh Rated,12h cyc. hor
|
|
|
|
98 %
|
|
|
|
|
|
|
Farbkennung
|
|
|
|
728
|
|
|
|
|
|
|
Lichtfarbe
|
|
|
|
Weiß
|
|
|
|
|
|
|
Farbkoordinate X
|
|
|
|
453 -
|
|
|
|
|
|
|
Farbkoordinate Y
|
|
|
|
405 -
|
|
|
|
|
|
|
Lum. Flux EL25°C, Rat. base up
|
|
|
|
6780 Lm
|
|
|
|
|
|
|
Lum. Flux EL25°C, Rat. horiz.
|
|
|
|
7200 Lm
|
|
|
|
|
|
|
Lum Effic Rat EL 25°C base up
|
|
|
|
113 Lm/W
|
|
|
|
|
|
|
Lum Effic Rat EL 25°C horiz.
|
|
|
|
120 Lm/W
|
|
|
|
|
|
|
Color Rendering Index, base up
|
|
|
|
64 (min), 67 (nom) Ra8
|
|
|
|
|
|
|
Color Rendering Index, horiz
|
|
|
|
70 (min), 73 (nom) Ra8
|
|
|
|
|
|
|
Color Temperature, base up
|
|
|
|
2800 K
|
|
|
|
|
|
|
Color Temperature, horizontal
|
|
|
|
2800 K
|
|
|
|
|
|
|
Color Temp. Technical, base up
|
|
|
|
2590 K
|
|
|
|
|
|
|
Color Temp. Technical, horiz.
|
|
|
|
2760 K
|
|
|
|
|
|
|
LLMF EL 12000h Rated, base up
|
|
|
|
84 %
|
|
|
|
|
|
|
LLMF EL 12000h Rated, horiz.
|
|
|
|
89 %
|
|
|
|
|
|
|
LLMF EL 2000h Rated, base up
|
|
|
|
89 %
|
|
|
|
|
|
|
LLMF EL 2000h Rated, horiz.
|
|
|
|
92 %
|
|
|
|
|
|
|
LLMF EL 4000h Rated, base up
|
|
|
|
87 %
|
|
|
|
|
|
|
LLMF EL 4000h Rated, horiz.
|
|
|
|
90 %
|
|
|
|
|
|
|
LLMF EL 6000h Rated, base up
|
|
|
|
87 %
|
|
|
|
|
|
|
LLMF EL 6000h Rated, horiz.
|
|
|
|
90 %
|
|
|
|
|
|
|
LLMF EL 8000h Rated, horiz.
|
|
|
|
90 %
|
|
|
|
|
|
|
LLMF EL 8000h Rated, base up
|
|
|
|
86 %
|
|
|
|
|
|
|
LLMF EL 16000h Rated, base up
|
|
|
|
77 %
|
|
|
|
|
|
|
LLMF EL 16000h Rated, horiz.
|
|
|
|
87 %
|
|
|
|
|
|
|
LLMF EL 20000h Rated, horiz.
|
|
|
|
86 %
|
|
|
|
|
|
|
LLMF EL 24000h Rated, horiz.
|
|
|
|
84 %
|
|
|
|
|
|
|
LLMF EL 30000h Rated, horiz.
|
|
|
|
82 %
|
|
|
|
|
|
|
Chrom. Coord. X @ ±60% power
|
|
|
|
461 -
|
|
|
|
|
|
|
Chrom. Coord. Y @ ±60% power
|
|
|
|
414 -
|
|
|
|
|
|
|
Colour Temp. @ ±60% power
|
|
|
|
2715 K
|
|
|
|
|
|
|
CRI @ ±60% power
|
|
|
|
62 -
|
|
|
|
|
|
|
Luminous Efficacy @ ±60% power
|
|
|
|
90 Lm/W
|
|
|
|
|
|
|
Luminous Flux @ ±60% power
|
|
|
|
3240 Lm
|
|
|
|
|
|
|
Lampenleistung
|
|
|
|
60 W
|
|
|
|
|
|
|
Lampenspannung
|
|
|
|
92 V
|
|
|
|
|
|
|
Lampenstrom (EVG)
|
|
|
|
0.644 A
|
|
|
|
|
|
|
Zündzeit
|
|
|
|
30 (max) s
|
|
|
|
|
|
|
Anlaufzeit (90% Lichtleistung)
|
|
|
|
3 (max) min
|
|
|
|
|
|
|
Dimmbar
|
|
|
|
Ja
|
|
|
|
|
|
|
Neuzündungszeit (sek)
|
|
|
|
900 (max) s
|
|
|
|
|
|
|
Lampenstr.verb.EL 25°C,geschä.
|
|
|
|
60 W
|
|
|
|
|
|
|
Lampenstr.verb.EL 25°C,nomin.
|
|
|
|
60 W
|
|
|
|
|
|
|
Lamp Current EL at ±60% power
|
|
|
|
0.383 mA
|
|
|
|
|
|
|
Lamp Wattage EL at ±60% power
|
|
|
|
36 W
|
|
|
|
|
|
|
Quecksilbergehalt
|
|
|
|
2 mg
|
|
|
|
|
|
|
Schadensfaktor
|
|
|
|
0.17 -
|
|
|
|
|
|
|
PET (NIOSH)
|
|
|
|
8 (min) h500lx
|
|
|
|
|
|
|
Sockeltemperatur
|
|
|
|
300 (max) C
|
|
|
|
|
|
|
Kolbentemperatur
|
|
|
|
400 (max) C
|
|
|
|
|
|
|
Gesamtlänge C
|
|
|
|
132 (max) mm
|
|
|
|
|
|
|
Durchmesser D
|
|
|
|
19 (nom), 20 (max) mm
|
|
|
|
|
|
|
Lichtquellendurchmesser L
|
|
|
|
59 mm
|
|
|
|
|
|
|
Bogenlänge O
|
|
|
|
14 mm
|
|
|
|
|
|
|
Bestellnummer
|
|
|
|
208514 15
|
|
|
|
|
|
|
Produktcode
|
|
|
|
871150020851415
|
|
|
|
|
|
|
Produktname
|
|
|
|

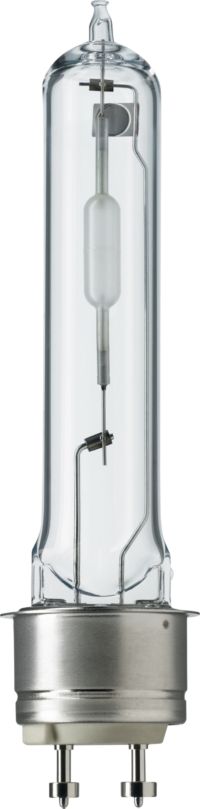

MASTER CosmoWhite CPO-TW Xtra 60W/728 PGZ12
|
|
|
|
|
|
|
Bestellbezeichnung
|
|
|
|
MST CosmoWh CPO-TW Xtra 60W/728 PGZ12
|
|
|
|
|
|
|
Anzahl pro Verpackung
|
|
|
|
1
|
|
|
|
|
|
|
Verpackungskonfiguration
|
|
|
|
12
|
|
|
|
|
|
|
Verpackungsanzahl pro Umverpackung
|
|
|
|
12
|
|
|
|
|
|
|
Barcode auf Verpackung (EAN1)
|
|
|
|
8711500208514
|
|
|
|
|
|
|
Barcode auf Umverpackung (EAN3)
|
|
|
|
8711500208521
|
|
|
|
|
|
|
12 NC
|
|
|
|
928088505127
|
|
|
|
|
|
|
ILCOS-Code
|
|
|
|
MT-60/28/2B-H-PGZ12
|
|
|
|
|
|
|
Nettogewicht pro Stück
|
|
|
|
0.034 kg
|
|
|
|
